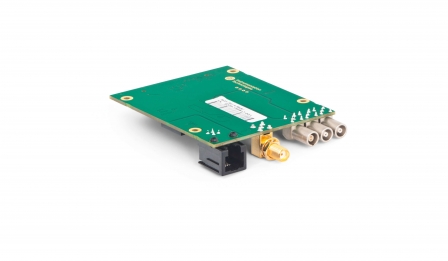

DAI Module
Product Description
The DAI module extends the interconnection capabilities of Libera Platform C instruments. The module provides analog and digital interfaces and an Interlock output. All, except the Interlock interface, have no functionality but are available for custom development.
List of interfaces of DAI module
| Input connector | Type | Description |
|---|---|---|
| T3 T4 | EPL.00.250.NTN (mating type: FFA.00.250.NTAC29) | LVTTL (3.3 V) ~10 kΩ termination Can be configured as input or output |
| ILK | EPG.00.302.NLN | Requires an external circuit |
| AOUT | SMA-F | 16-bit 100 kSps DAC Output type ~ 1.25 V @ 50 Ω |
| DOUT | RJ-25, 6p6 | Half duplex Up to 20 Mbps |
All interfaces are supported in software and FPGA but require further development.
COMPATIBLE WITH
Libera Photon
Photon beam position monitor electronics
Libera Spark HL
Compact beam position monitor electronics for electron & hadron linear machines
Libera Spark HR
Compact beam position monitor electronics for hadron circular machines
Libera Spark ERXR / ERPT
Compact beam position monitor electronics for electron circular machines.
Libera Digit 125
General purpose digitizer with a sampling frequency of 125 MHz
Libera Digit 500
Low-noise and wide dynamic range digitizer with a sampling frequency of 500 MHz
