GDX Module
Product Description

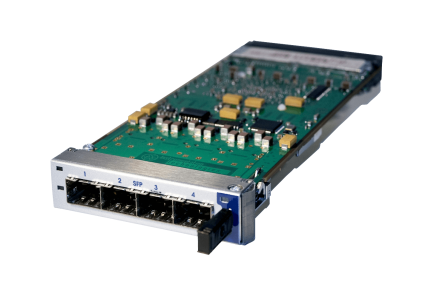

The GDX module extends the interconnection capabilities of the BPM electronics. Four protocol independent small form pluggable (SFP) slots can be used to build a closed loop of all the instruments in the accelerator. It features a Virtex6 FPGA, which is completely open to user-developed applications. It can process the internal (within the chassis) and external position data at various data rates.
Capabilities of GDX module
| FPGA chip | XC6VLX24OT-2FF784C |
| Memory | 2 GB DDR3 |
| I/O interfaces | 4X SFP+ compliant, compliant multiprotocol operations, LVDS links to AMC connectors |
| SFP protocol | AURORA, GbE, others on request; independent to each SFP |
| PCIexpress x4 bus interface to instrument's backpane | |
| On-board clock synthesizer and programmable VCXO for clock generation | |
| Board management is already established |
COMPATIBLE WITH
Libera Hadron
High performance beam position monitor electronics for hadron circular machines
Libera Brilliance+
High-precision beam position monitor electronics for electron synchrotron accelerators.
Libera Single Pass E
High performance beam position monitor electronics for electron linear machines
Libera Single Pass H
High performance beam position and phase monitor electronics for hadron linear machines
